How to replace trailing arm bushes on a 4motion/R32

Recommended Posts

I've had problems adjusting my rear toe on my 4motion and after talking to others I decided to replace my trailing arm bushes which looked to be a right pig of a job. It is possible to do the whole thing without disconnecting the brakes and without removing the trailing arms. This helps save loads of hassle and a lot of time. Without guidance I managed to do both sides in just under 3 hours which I think is a reasonable amount of time for the job. As a positive side effect it is possible to carry out another modification giving even more rear adjustment.

First out you need to raise and secure the back end which I did using a jack and axle stands. With both rear wheels removed you can now gather the tools needed.

  • 1. Brake bar * 2. 16, 17,18mm sockets and ratchet * 3. 10mm spanner * 4. Cordless drill * 4. Drift * 5. Hammer * 6. drill bits * 7. wire wheel for the drill * 8. Angle grinder or hack saw

With the car raised and supported you need to undo the 4 bolts holding the trailing arm support bracket and on the passenger side unclip the brake pipe from its holders. "note" on the drivers side you will need to cut a slot the width of the brake pipe in the bracket to allow removal. This does not compromise in any way as the clip then goes back on and covers the gap.

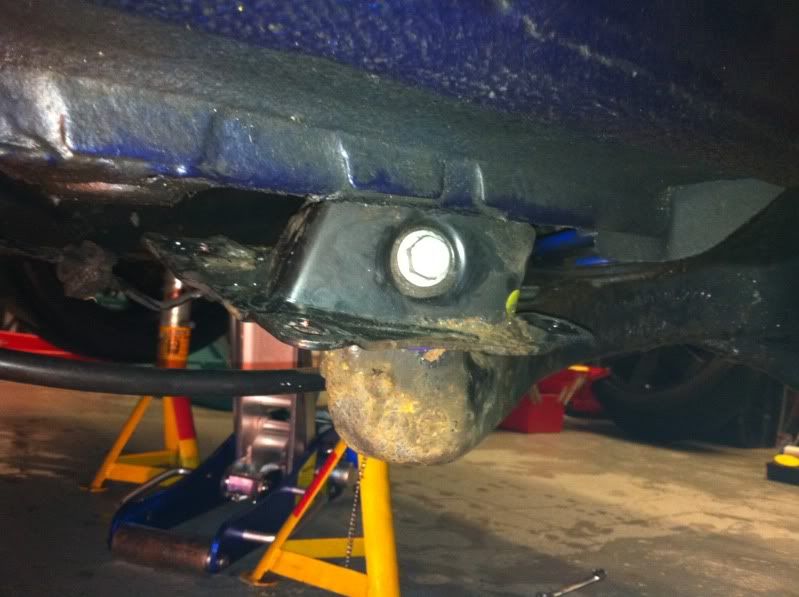

With the bracket lowered you may need to ease it down some with a lever or piece of wood to access the bush retaining bolt.

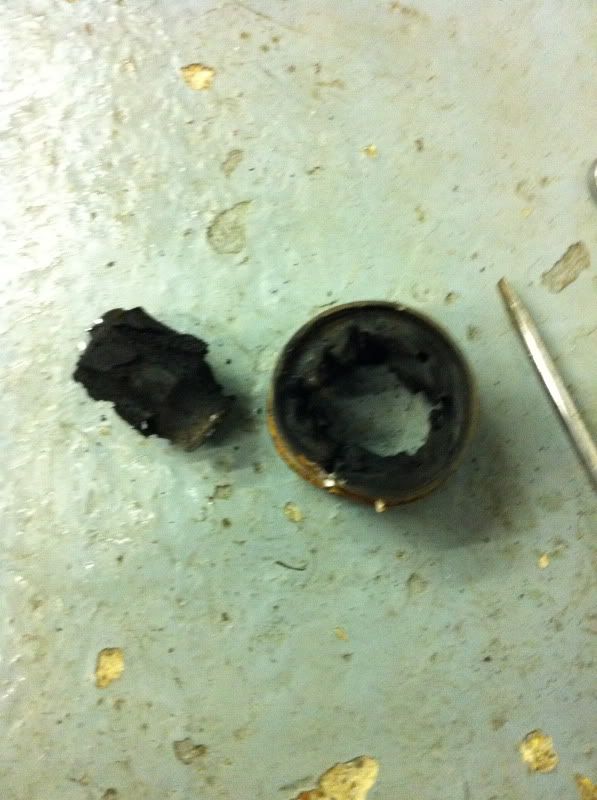

With this accessible and bolt removed lift away the bush housing. The bush will now be in clear view to drill out the centre and surrounding rubber. With the majority of the bush drilled out a soft drift will easily hammer out the rest.

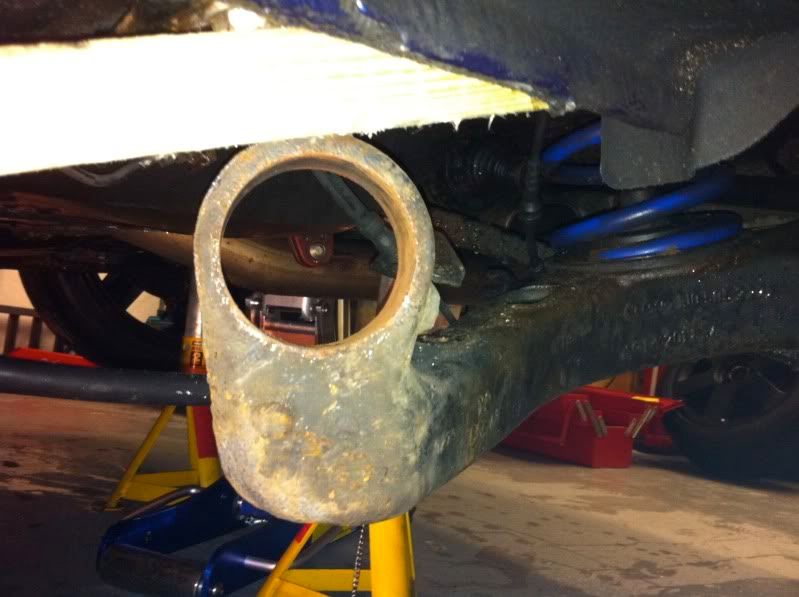

With the bush removed it is worth giving the face of the arm a good clean with a wire brush in a drill to removed any surface scaling or rust. In the next picture you can see the positioning of the wood to lower everything down to make it easier to reach.

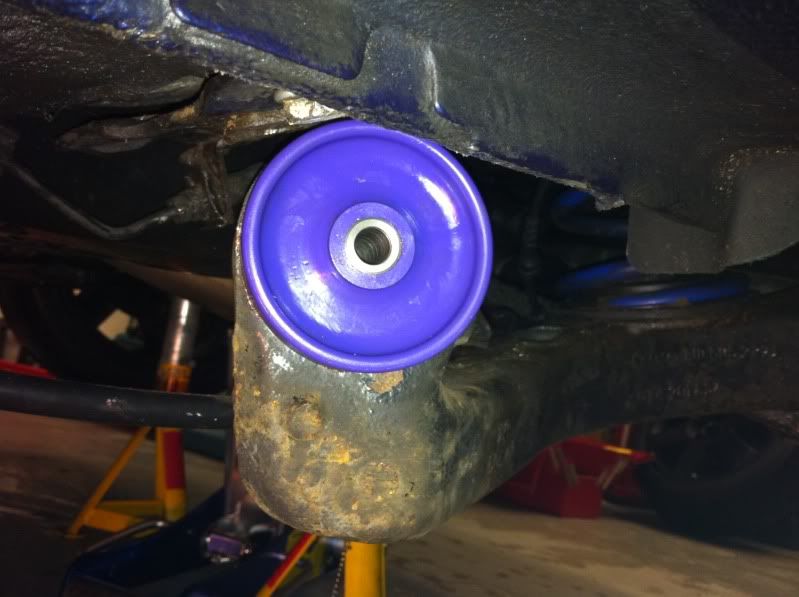

With this all prepared the new bush can be greased and positioned back into the housing.


It is now that the plastic caps that are above this unit can be removed and disgarded. They hinder the adjustment available and serve little purpose. The chassis legs are heavily galvanized inside.

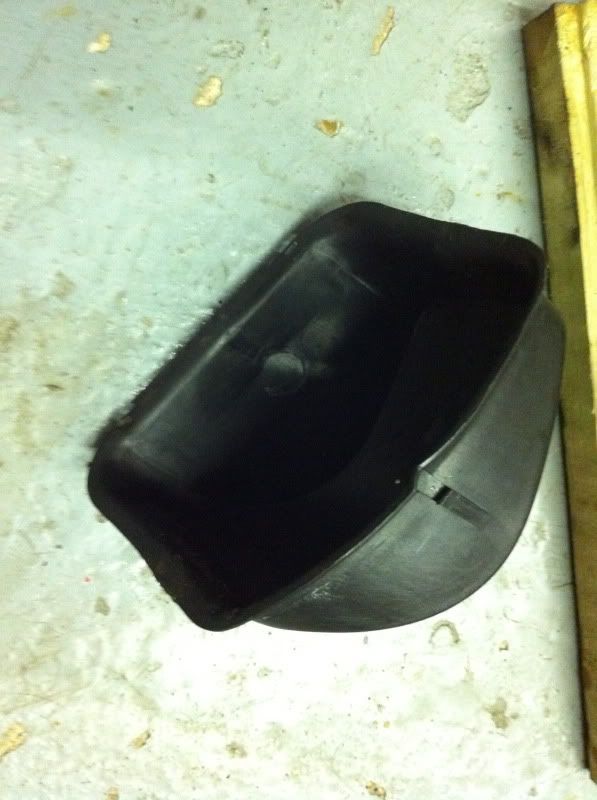

Here is a picture of one of the caps when removed and if you look carefully you can see the marks from the bush retaining bolt.

IMG_0440.jpg The refitting of everything is the reverse of removal but care needs to be taken and the toe set roughly by eye and then correctly adjusted with alignment tools. I like to use Super Tracker who have very accurate setting equipment. I'd like to thank Matt from United Motorsport for advice and sourcing the bushes for me.
