Tommy Reed 1 Posted June 9, 2020 Author Report Share Posted June 9, 2020 Link to post Share on other sites

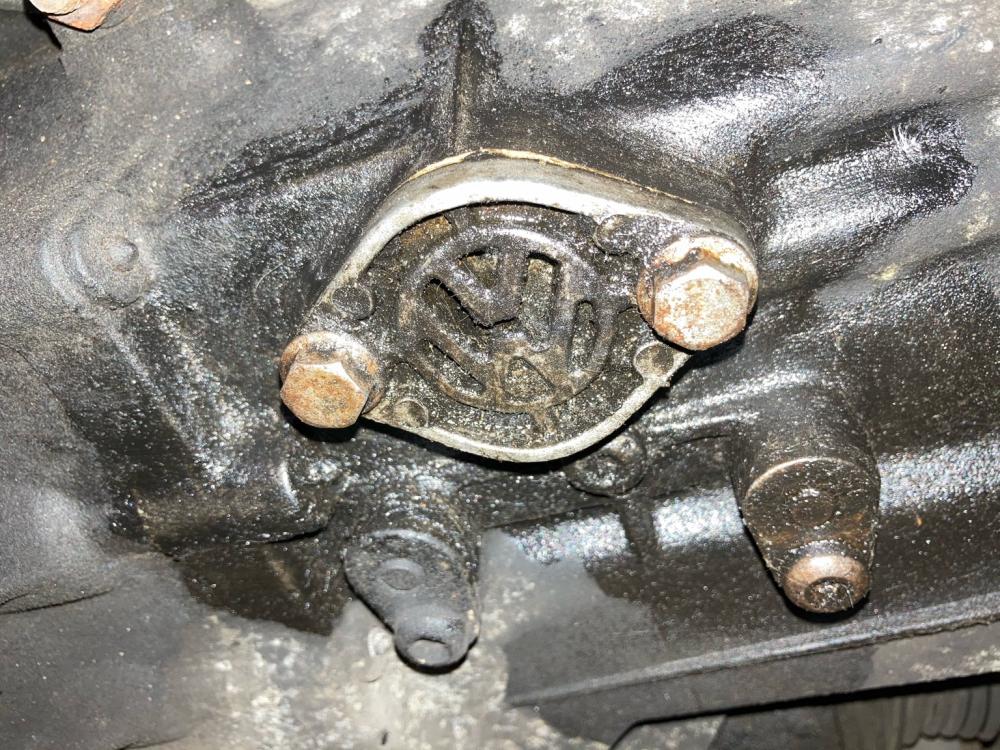

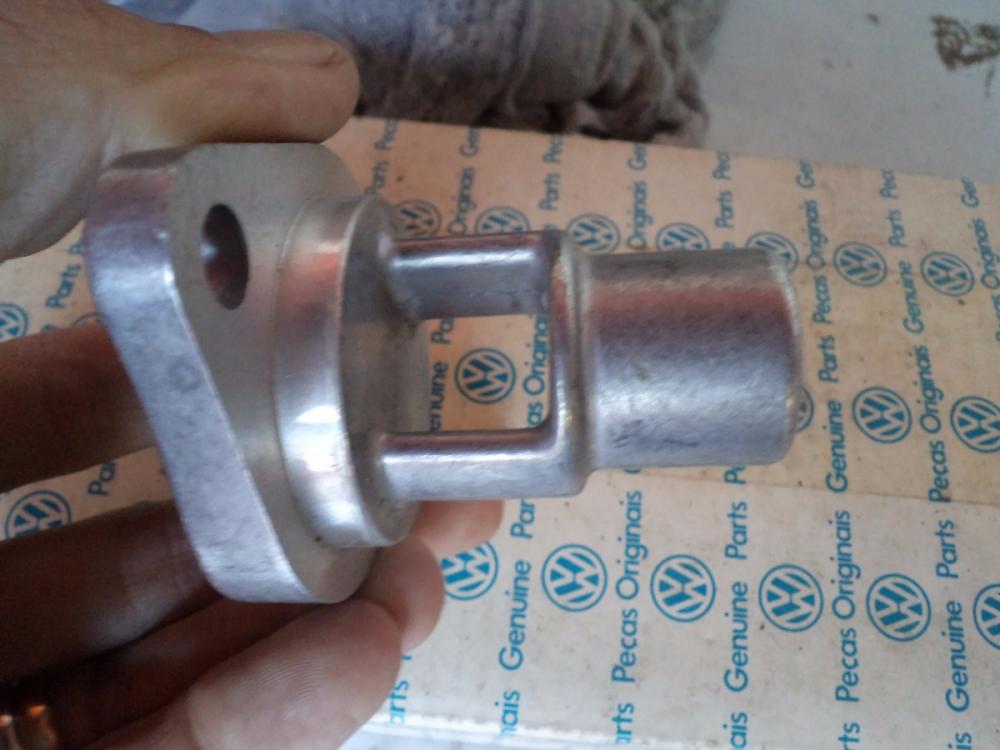

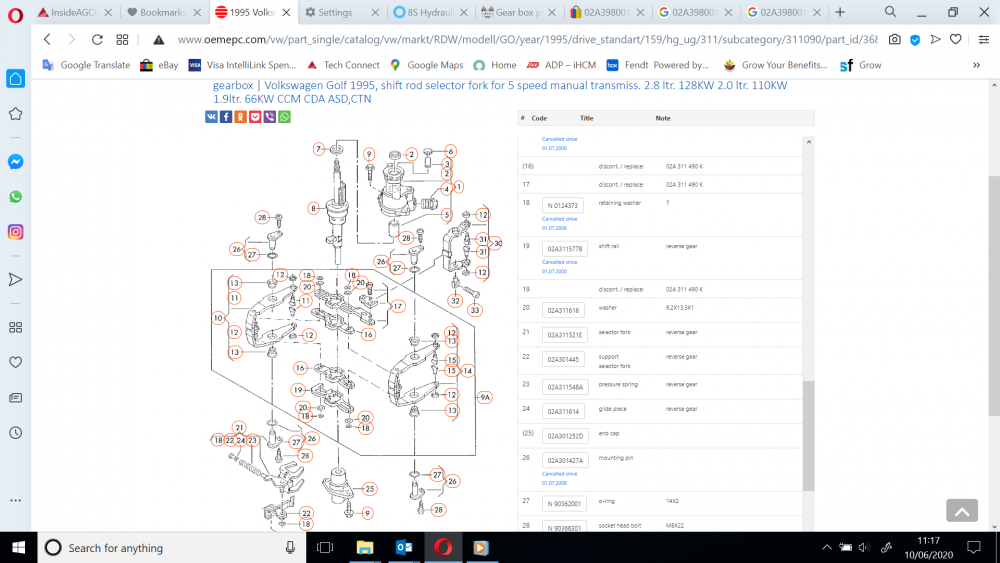

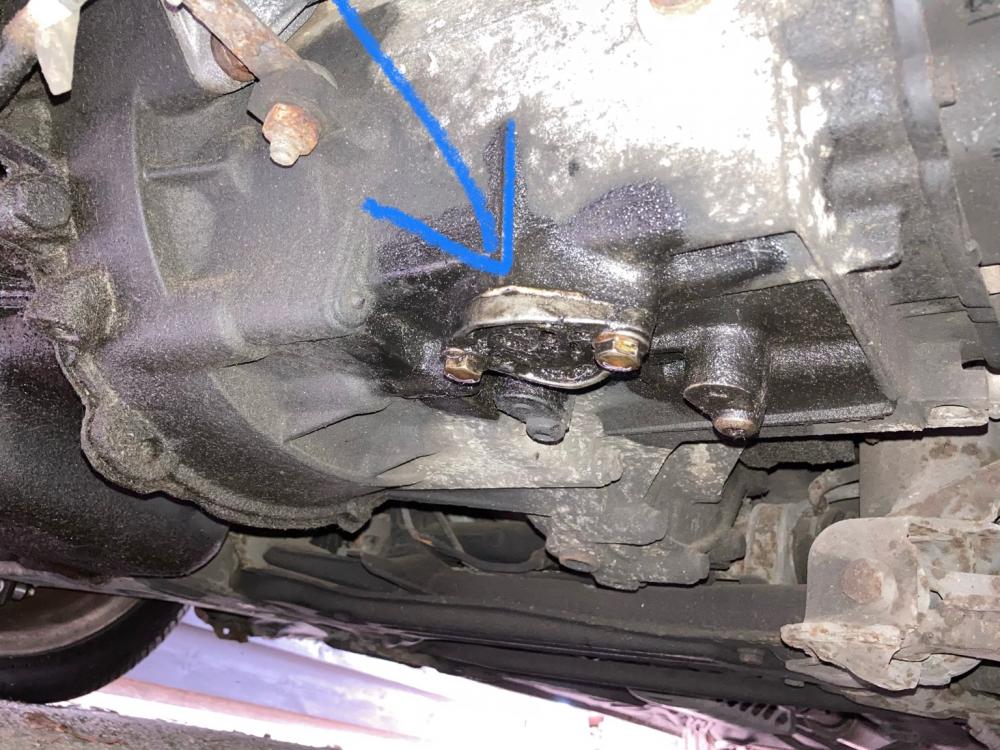

chalkyh 10 Posted June 10, 2020 Report Share Posted June 10, 2020 (edited) I'm sure that's the lower support for the selector tower shaft, item 25, doesn't show a seal on the diagram though but thought there was an 'O' ring on it, a red one 25mm or so.... but stand corrected on that - it's sealed with the 'sealing paste' AMV18820003. There's certainly an 'O'ring on each of the bolted tabs by it, they're 14mm dia and on the diagram as no 27. Edited June 10, 2020 by chalkyh extra infos Link to post Share on other sites
Tommy Reed 1 Posted June 10, 2020 Author Report Share Posted June 10, 2020 Thanks very much, that’s really helpful. Link to post Share on other sites
Tommy Reed 1 Posted June 18, 2020 Author Report Share Posted June 18, 2020 Do think it would course problems to drop this out to reseal it? Don’t want it to move anything out of line. Link to post Share on other sites
chalkyh 10 Posted June 18, 2020 Report Share Posted June 18, 2020 (edited) Can't see it causing a problem, you will need to drain the oil and I'd put the gearlever into a forward plane (like any of 1st, 3rd, 5th gears) so it lifts the shaft 8 up a little. I can't guarantee any of the selector levers will drop - they shouldn't but you never know. Alternatively, just release the bolts a few threads, good solvent clean and get some sealer in there - with the oil drained. Edited June 18, 2020 by chalkyh extra info Link to post Share on other sites
Tommy Reed 1 Posted June 18, 2020 Author Report Share Posted June 18, 2020 Ok cool, will give it a go. Thanks for that pal. Link to post Share on other sites
